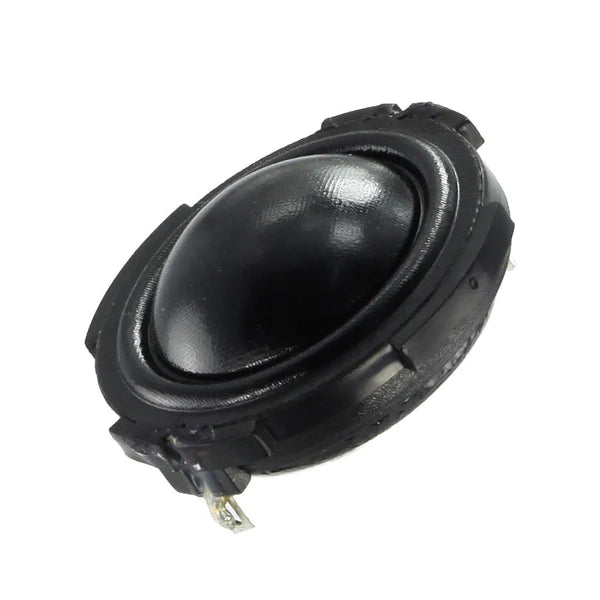

Peerless by Tymphany tweeter
PRODUCT DESCRIPTION
Peerless OC25SC65-04 tweeter is a great pairing for Peerless GBS midrange unit or as a standalone upgrade. Price is per pair.
Product Details |
|
|---|---|
| Brand | Peerless by Tymphany |
| Model | OC25SC65-04 |
| Part Number | 264-1018 |
| UPC | 844632083709 |
| Unit of Measure | Each |
| Weight | 0.1 |
Product Specifications |
|
|---|---|
| Cone / Dome Diameter | 1" |
| Cutout Diameter | 1.52 |
| Tweeter Type | Soft Dome |
| Power Handling (RMS) | 25 Watts |
| Impedance | 4Ω |
| Frequency Response | 1,300 to 20,000Hz |
| Sensitivity | 96.23dB 2.83V/1m |
Thiele-Small Parameters |
|
|---|---|
| Resonant Frequency (Fs) | 1382Hz |
| DC Resistance (Re) | 3Ω |
| Voice Coil Inductance (Le) | 0.02mH |
| Mechanical Q (Qms) | 4.07 |
| Electromagnetic Q (Qes) | 1.83 |
| Total Q (Qts) | 1.26 |
Mounting Information |
|
|---|---|
| Overall Outside Diameter | 1.62" |
| Depth | 1" |
QUESTIONS FROM OUR CUSTOMERS
Q: What are the compatible speaker sizes for the B9 Audi A4/A5 Series?
A: Typically, the front and rear doors accommodate 6.5-inch speakers, but it's recommended to check your specific model for exact sizing.
Q: Are these speakers compatible with the factory audio system?
A: Yes, our speaker replacements are designed to work seamlessly with the B9 Audi A4/A5 Series factory audio systems.
Q: Do I need professional installation for these speakers?
A: While professional installation is recommended for optimal results, our speakers come with detailed manuals to assist enthusiasts in a DIY installation.
Q: What is the power handling capability of these speakers?
A: Each speaker was chosen to match the output of the OEM component and leave some RMS in reserve in case of an aftermarket amplifier is added down the line.
Q: Are these speakers suitable for both front and rear locations?
A: In terms of size, yes. In terms of impedance, no. Front units are 8 ohms and rears are 4 ohms.
